The die and mould industry involves a wide range of applications, from press dies and die casting to injection moulds and forging dies. Each application presents unique challenges that require specialised tooling solutions. TaeguTec’s WIN-SFEED product line has been engineered specifically to address these diverse needs with a comprehensive suite of cutting tools.

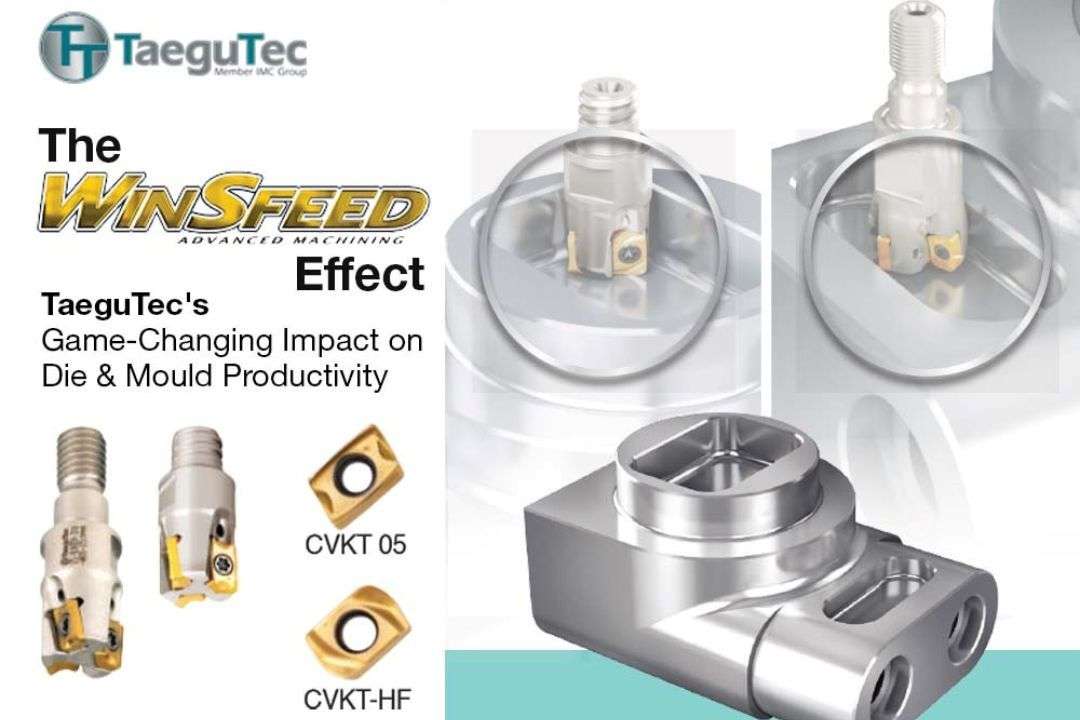

The WIN-SFEED range offers specialised tools for various machining operations critical to die and mould manufacturing. The WIN-MILL line, featuring CVKT inserts and holders, provides exceptional performance for small core machining operations. These small-sized end mills are optimised for miniature applications with indexable inserts and two-effective teeth, making them an excellent choice for cost reduction while maintaining precision.
The innovative V-bottom design maximises clamping stability for both high-feed and ramping operations, enabling consistent performance across multiple applications. This stability is crucial when working with the complex geometries common in die and mould manufacturing.For face milling operations, TaeguTec offers high-feed rough and finish milling solutions that significantly improve productivity.
The HXKU-M and HXHU-MM cutters are designed for large-diameter applications, providing exceptional material removal rates while maintaining surface quality. Profile milling tools like the 2FB and 3FB series deliver outstanding performance for rough, semi-finish, and finish operations. These tools are essential for creating the precise contours in die and mould components. The WIN-SFEED range includes specialised tools for peripheral milling, featuring innovative chip splitter designs that enhance surface finish quality. The 3PKT-SM and 4NKT-PNR inserts provide high-positive cutting geometry with multiple cutting edges, maximising tool life and productivity.
Advanced Features Driving Performance
What sets the WIN-SFEED tool range apart is its advanced technological features that directly address the challenges faced in die and mould manufacturing:
Robust Clamping System
The WIN-SFEED line utilises a unique inclined clamping system with wide contact surfaces, ensuring superior stability during machining operations. This robust clamping is particularly beneficial when machining hardened materials required for die and mould applications, where any instability can lead to poor surface finish or tool failure.
Optimised Chip Evacuation
Efficient chip evacuation is critical in die and mould machining, especially in deep cavities and minute features. The WIN-SFEED tools feature specialised designs that create sufficient space for smooth chip evacuation, reducing the risk of chip re-cutting and tool damage.
Internal Coolant Delivery
Many WIN-SFEED holders include internal through-coolant channels directed precisely to the insert’s cutting edge. This feature significantly increases productivity and tool life by maintaining optimal cutting temperatures and facilitating chip removal, particularly important in high-temperature machining of hardened die steels.
Real-World Benefits for Die &Mould Manufacturers
The WIN-SFEED tool range delivers tangible benefits that directly impact the bottom line for die and mould manufacturers:
Increased Productivity
By enabling higher feed rates and providing excellent stability, WIN-SFEED tools significantly reduce machining time. The high-feed capabilities of tools like the BLMP and 4NKT-HF series allow manufacturers to complete projects faster without sacrificing quality.
Extended Tool Life
The combination of optimised insert geometries, premium carbide grades, and efficient cooling systems ensures longer tool life even when machining hardened materials. This translates to fewer tool changes, reduced downtime, and lower tooling costs over time.
Superior Surface Finish
For die and mould applications where surface quality is paramount, the WIN-SFEED range delivers exceptional results. The stable cutting action and precision-engineered geometries produce excellent surface finishes, reducing or eliminating the need for additional finishing operations.
Versatility Across Applications
Whether machining press dies, injection moulds, or die casting components, the WIN-SFEED range offers solutions for every stage of the manufacturing process. From rough milling to precision finishing, these tools provide consistent performance across a wide range of materials and applications.
TaeguTec’s WIN-SFEED tool range represents a significant advancement for the die and mould industry. By addressing the specific challenges of this demanding sector with innovative cutting tool solutions, TaeguTec is empowering manufacturers to achieve higher productivity, better quality, and improved profitability.
In an industry where precision and efficiency are non-negotiable, the WIN-SFEED range stands out as a comprehensive tooling solution that delivers measurable advantages. As manufacturing continues to evolve with increasingly complex designs and tighter tolerances, TaeguTec’s commitment to innovation ensures that die and mould manufacturers have the cutting-edge tools they need to stay competitive in a global marketplace.
