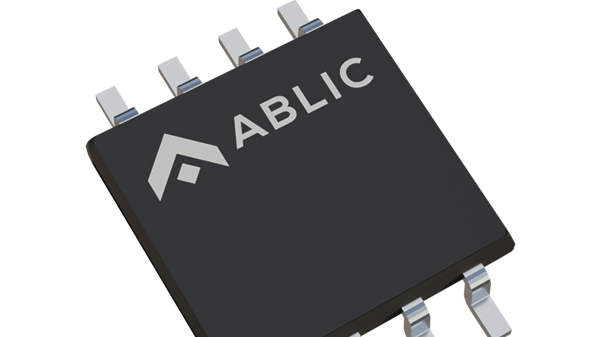

ABLIC, a MinebeaMitsumi Inc. group company, has launched the S-5611A, a cutting-edge linear Hall effect IC designed for general-purpose devices. This innovation addresses the growing demand for energy-efficient solutions, particularly in renewable energy systems like solar and wind power generation, as well as industrial applications such as machine tools.
The use of renewable energy sources like solar and wind power continues to expand, driven by efforts to maximize their efficiency and minimize environmental impact. General-purpose inverters with current sensors play a critical role in these systems, as well as in industrial machinery, by enhancing energy utilization. Improving the speed and precision of current sensors is crucial to boosting the overall efficiency of inverters.
The newly launched S-5611A is a programmable linear Hall effect IC that combines high precision with advanced functionality. It delivers an industry-leading response time of 1.25μs and ultra-low noise performance of 0.09μT/√Hz, ensuring accurate detection of even subtle current changes. This enhances inverter control, contributing to superior system performance.
The IC is equipped with a frequency band selection feature, enabling users to choose from 400kHz, 200kHz, or 100kHz, offering flexibility to optimize performance for specific applications. It also includes a temperature compensation mechanism to address variations in magnetic core characteristics, ensuring reliable operation and high accuracy across a wide temperature range.
With its ability to lower power consumption, reduce CO2 emissions, and enhance energy efficiency, the S-5611A is ideally suited for designing current sensors used in eco-friendly, high-performance inverters and DC-DC converters.
The S-5611A linear Hall effect IC offers key features that enhance its performance and versatility. With a high-speed response of 1.25μs, it boosts energy efficiency, while its low noise performance of 0.09μT/√Hz ensures precise current measurement. The IC includes programmable frequency bands of 400kHz, 200kHz, and 100kHz, allowing users to optimize it for specific applications. Additionally, its built-in temperature compensation function maintains consistent accuracy across varying conditions, making it a reliable choice for advanced inverter and energy systems.
The S-5611A by ABLIC significantly reduces detection delays while maintaining excellent noise control, striking a balance between speed and precision. Its advanced capabilities simplify the design process and elevate the performance of renewable energy and industrial systems.
